Description

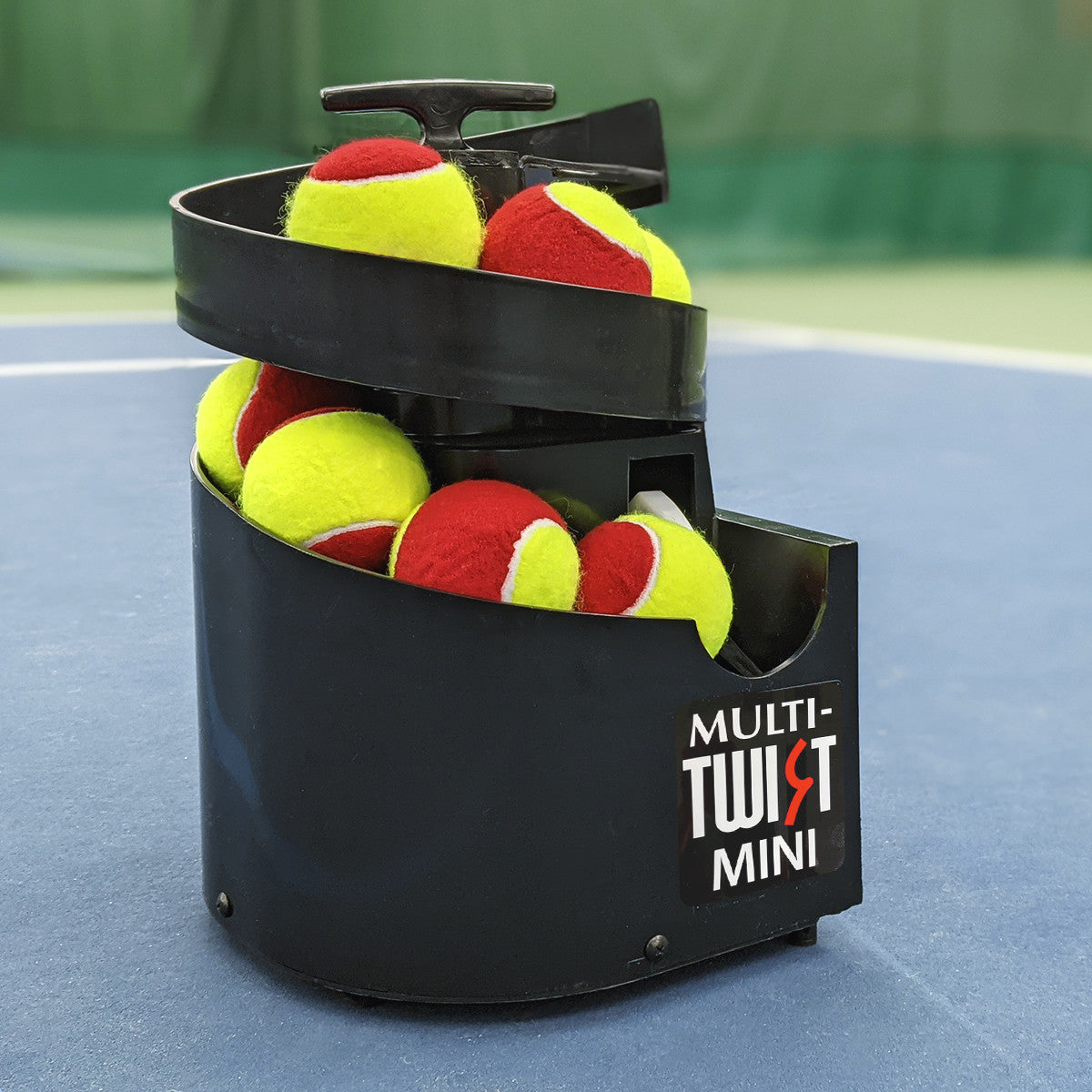

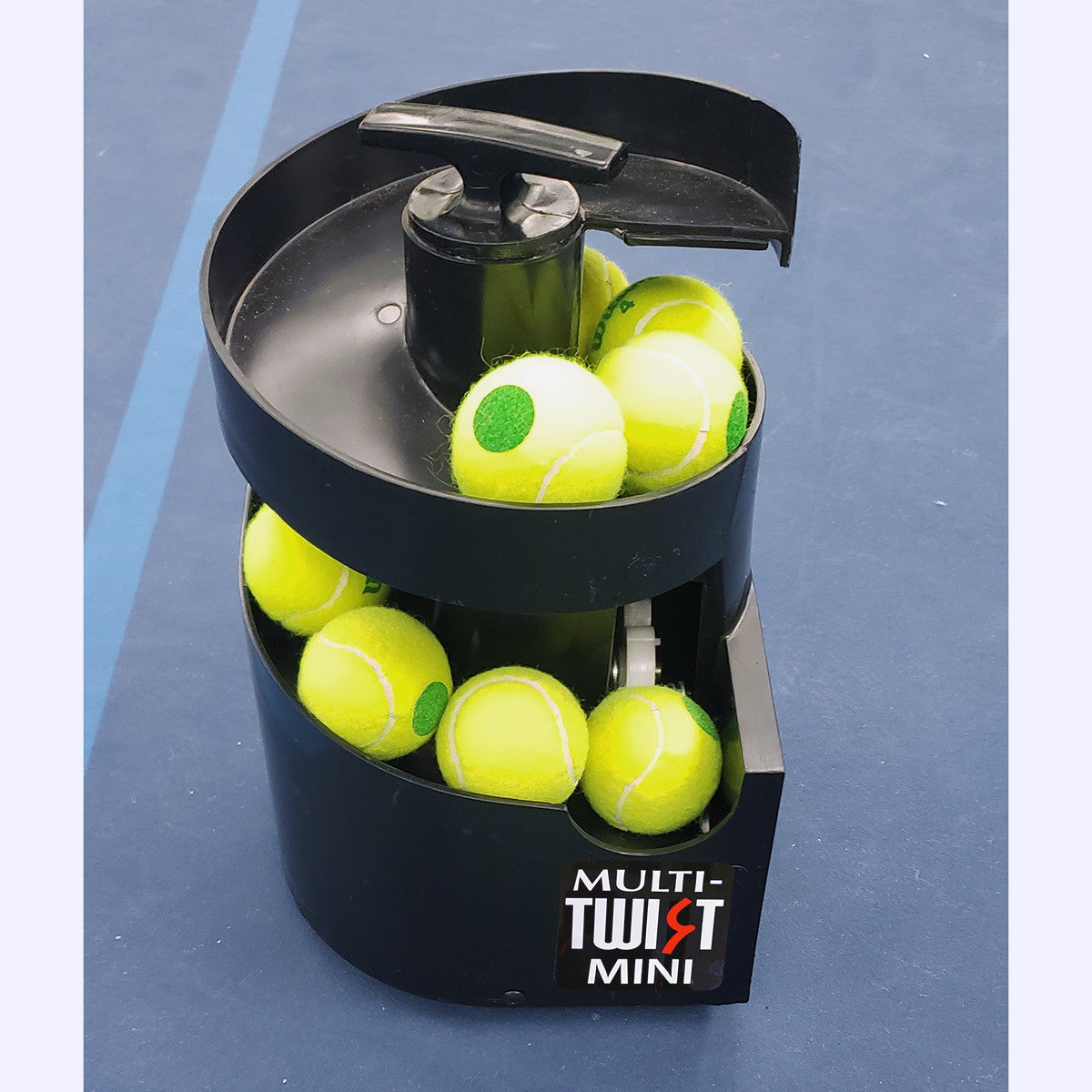

The Multi-Twist Mini Ball Machine is a compact and portable training tool. Lightweight yet durable, this mini ball machine delivers adjustable feeds with customizable speed and trajectory settings for players of all skill levels.
Problem: “I want a portable ball machine that’s easy to use and doesn’t take up a lot of space, but still gives me quality practice.”
Solution: The Multi-Twist Mini Ball Machine combines portability, simplicity, and versatile training features into one compact design, making it easy to practice consistently almost anywhere.
Uses
- Solo tennis practice
- Stroke repetition drills
- Footwork training
- Junior player development
- Backyard and driveway practice
- Coaching sessions
- Club and academy training
Shipping outside of the continental USA is currently unavailable.
Features
- Compact and lightweight portable design
- Adjustable ball speed and trajectory settings
- Consistent ball feeds every 3.5 seconds
- Easy-to-use controls for all skill levels
- Durable construction for long-term training use
- Portable enough for backyard and driveway practice
Benefits
- Helps improve consistency and timing
- Allows players to train independently
- Lightweight and easy to transport
- Quick setup for convenient practice
- Adjustable settings for different training needs
- Compact size makes storage simple
Specs
Ball Feed Interval: 1 ball every 3.5 seconds
Ball Ejection Distance: 10–20 foot toss
Speed Settings: 5 adjustable settings
Tennis Ball Capacity: 14 standard tennis balls
Green Ball Capacity: 14 green transition balls
Orange Ball Capacity: 14 orange transition balls
Red Ball Capacity: 12 red transition balls
Weight: 6 lbs
Dimensions: 10" x 10" x 17"
Instructions
Install the Batteries
Battery Compartment Location
The battery compartment is located on the bottom of the machine.
Steps
- Push back the two latches to remove the battery cover.
- Insert six “D” batteries following the polarity markings inside the compartment.
- Replace the battery cover securely.
Battery Recommendations
- New alkaline batteries typically last 8–10 hours.
- Rechargeable Ni-MH 1.2V batteries may also be used.
- Rechargeable batteries generally provide about 2 hours of use per charge.
Ball Feed Information
- Feed Rate: 1 ball every 3.5 seconds
Adjusting Ball Toss Distance
Important
Only adjust the toss setting while the machine is turned OFF.
How to Adjust
- Locate the adjustment ring on the bottom of the machine.
- Move the slot:
- Toward “HI” for a higher and deeper toss
- Toward “LO” for a shorter toss
Toss Settings
The machine includes 5 adjustable positions.
Recommended Settings
- Tennis balls: typically work best on HI
- Lighter balls: typically work best on LO
Important Operating Tips
Before Adjusting Toss Settings
- Launch one ball first.
- Immediately turn the machine OFF after the ball is thrown.
- Then adjust the toss setting as needed.
Prevent Motor Stress
- Do NOT run the machine empty.
- Always keep balls on the track during operation.
Positioning Tips
Groundstroke Practice
Place the machine:
- Near the net aimed toward the baseline, OR
- On the opposite side of the net from the player
Volley Practice
Place the machine on the opposite side of the net from the player.
Safety Warning
DO NOT stand near the ball ejection point. Injury may occur.
Using with the Infinity Play System
The Multi-Twist Mini Ball Machine can be paired with the Infinity Play System for continuous play and retrieval training. Review the Infinity Play System instructions before connecting the machine to the Infinity Play Net.
